Advanced Light Source sets microscopy record

By R&D Editors | September 11, 2014

A record-setting x-ray microscopy experiment may have ushered in a new era for nanoscale imaging. Working at the U.S. Dept. of Energy (DOE)’s Lawrence Berkeley National Laboratory (Berkeley Lab), a collaboration of researchers used low energy or “soft” x-rays to image structures only 5 nm in size. This resolution, obtained at Berkeley Lab’s Advanced Light Source (ALS), is the highest ever achieved with x-ray microscopy.

Using ptychography, a coherent diffractive imaging technique based on high-performance scanning transmission x-ray microscopy (STXM), the collaboration was able to map the chemical composition of lithium iron phosphate nanocrystals after partial dilithiation. The results yielded important new insights into a material of high interest for electrochemical energy storage.

“We have developed diffractive imaging methods capable of achieving a spatial resolution that cannot be matched by conventional imaging schemes,” says David Shapiro, a physicist with the ALS. “We are now entering a stage in which our x-ray microscopes are no longer limited by our optics and we can image at nearly the wavelength of our x-ray light.”

Shapiro is the lead and corresponding author of a paper reporting this research in Nature Photonics.

In ptychography, acombination of multiple coherent diffraction measurements is used to obtain 2-D or 3-D maps of micron-sized objects with high resolution and sensitivity. Because of the sensitivity of soft x-rays to electronic states, ptychography can be used to image chemical phase transformations and the mechanical consequences of those transformations that a material undergoes.

“Until this work, however, the spatial resolution of ptychographic microscopes did not surpass that of the best conventional systems using x-ray zone plate lenses,” says Howard Padmore, leader of the Experimental Systems Group at the ALS and a co-author of the Nature Photonics paper. “The problem stemmed from the fact that ptychography was primarily developed on hard x-ray sources using simple pinhole optics for illumination. This resulted in a low scattering cross-section and low coherent intensity at the sample, which meant that exposure times had to be extremely long, and that mechanical and illumination stabilities were not good enough for high resolution.”

Key to the success of Shapiro, and his collaborators were the use of soft x-rays which have wavelengths ranging between 1 to 10 nm, and a special algorithm that eliminated the effect of all incoherent background signals. Ptychography measurements were recorded with the STXM instruments at ALS beamline 11.0.2, which uses an undulator x-ray source, and ALS beamline 5.3.2.1, which uses a bending magnet source. A coherent soft x-ray beam would be focused onto a sample and scanned in 40-nm increments. Diffraction data would then be recorded on an x-ray CCD (charge-coupled device) that allowed reconstruction of the sample to very high spatial resolution.

“Throughout the ptychography scans, we maintained the sample and focusing optic in relative alignment using an interferometric feedback system with a precision comparable to the wavelength of the x-ray illumination,” Shapiro says.

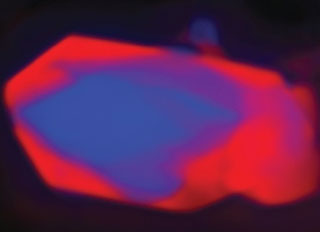

Lithium iron phosphate is widely studied for its use as a cathode material in rechargeable lithium-ion batteries. In using their ptychography technique to map the chemical composition of lithium iron phosphate crystals, Shapiro and his collaborators found a strong correlation between structural defects and chemical phase propagation.

“Surface cracking in these crystals was expected,” Shapiro says, “but there is no other means of visualizing the correlation of those cracks with chemical composition at these scales. The ability to visualize the coupling of the kinetics of a phase transformation with the mechanical consequences is critical to designing materials with ultimate durability.”

Shapiro and his colleagues have already begun applying their ptychography technique to the study of catalytic and magnetic films, magnetotactic bacteria, polymer blends and green cements.

For the chemical mapping of lithium iron phosphate they used the STXM instrument at ALS beamline 5.3.2.1 which required up to 800 msec of exposure to the x-ray beam for each scan. Next year, they anticipate using a new ALS beamline called COSMIC (COherent Scattering and MICroscopy), which will feature a high brightness undulator x-ray source coupled to new high-frame-rate CCD sensors that will cut beam exposure times to only a few milliseconds and provide spatial resolution at the wavelength of the radiation.

Source: Lawrence Berkeley National Laboratory
