Nuclear magnetic resonance (NMR) spectroscopy has been incorporated by the intergovernmental and International Organization of Vine and Wine (OIV) in its compendium of International Methods of Analysis of Wines and Musts, for the quantification of six key parameters in wine – glucose, malic acid, acetic acid, fumaric acid, shikimic acid and sorbic acid.
NMR FoodScreener platform enabling robust, quantitative wine-profiling by 1H-NMR
Traditionally, several analytical techniques with individual calibrations are needed to measure these parameters. Now, 1H-NMR can very accurately quantify a significantly higher number of compounds in wines – simultaneously, label-free and with a single calibration.
The advent of advanced techniques like 1H-NMR helps to complete the chain of authenticity in high-end wine supply chains. The 1H-NMR fingerprint contains hundreds of signals that, when combined with sophisticated statistics, allows the creation of robust databases, providing a reference for the contents, varietals and regions of production of wines.
Bruker’s NMR Wine-Profiling 4.0 module is based on the 400 MHz NMR FoodScreener platform. Now, 1H-NMR profiling has been accepted by the OIV, and offers the direct, label-free quantification of 53 compounds in a single, automated measurement. This enables the verification of geographical origin, grape variety of monovarietal wines and quality grade of Spanish red wines. This addresses the increasing demand for assurance of the origin and integrity of wine from the vineyard to the point of sale, enhancing supply chain surveillance and protecting valuable brands.

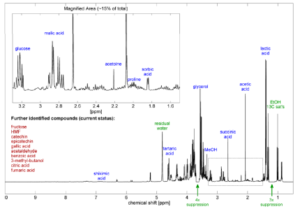

1H 400 MHz FT-NMR spectra of wine with assignments for precise, label-free quantitation
“The versatility of this equipment makes it possible to adapt the analyses to our client´s specific needs. A single analysis is enough to obtain information about over 50 wine metabolites. Until now, a wine laboratory would have had to use a combination of various methods to arrive at similar results. The Wine-Profiling 4.0 module gives an overall view of the wine’s main components, such as acidity and alcohol content and of minor ones, like polyphenols and amino acids,” said Elena Meléndez Álvarez, director at the Estación Enológica de Haro, La Rioja, Spain.
“The announcement of 1H-NMR as an official OIV method is an important step forward for the wine industry, and Bruker is proud to contribute high-value solutions that lead the way. Robust, quantitative wine-profiling by 1H-NMR is an easy-to-use, rapid and reliable test that provides growers and producers with the assurance of an authentication method to detect adulteration or fraud,” said Dr. Iris Mangelschots, president of Bruker BioSpin’s Applied, Industrial and Clinical Division.
Following this major milestone in NMR-based wine profiling, Bruker continues to innovate in NMR and is developing advanced food analysis solutions based on the principles of blockchain to identify adulteration in high value products such as honey, juice, spices and olive oil.
